XTAR MASTER VC2 Plus Charger

✔ Innovative LCD display screen
✔ Compatible with Li-ion, Ni-MH/Ni-CD batteries

Be the first to review this product

Availability: Out of stock


0% OFF

Login to get better price
Reward Points You will earn 30 Points for writing a review this product.
100% Original


Brand: XTAR
Product Name: XTAR VC2 Plus Charger Dual Slots
SKU: XTP000500
Type: Charger
Color: Black
Launch Date: September 7th, 2018

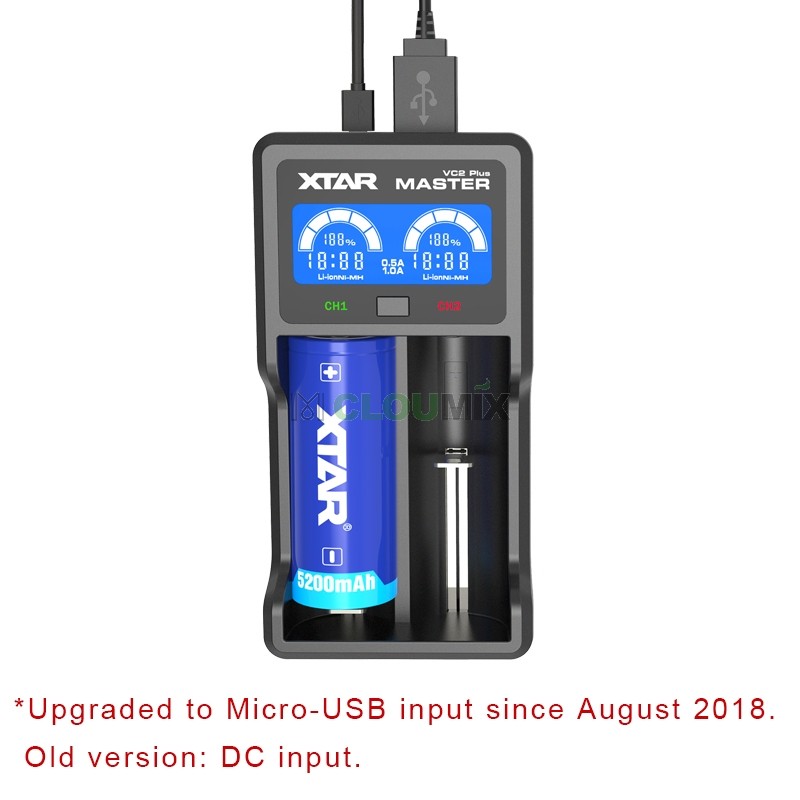

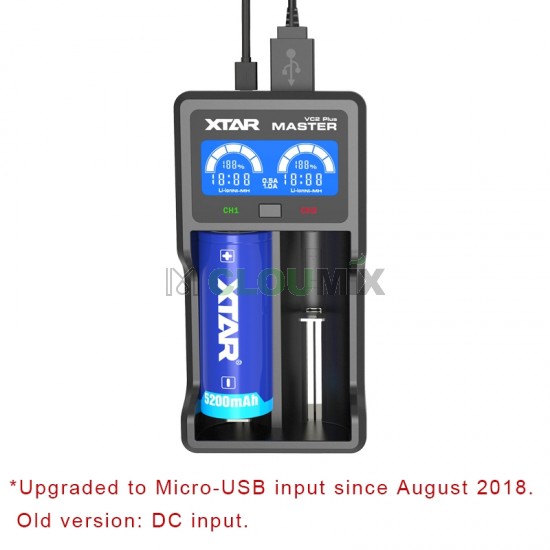

The MASTER XTAR VC2 Plus is a lithium-ion/Ni-MH battery charger which features two slots and an innovative LCD display screen to show all info you want. Both slots are independent, and they have "null"/"Err" display and tell you the real power of your batteries. With the power-path management system, it can charge both batteries and external device at the same time. The charger is compatible with different kinds and sizes of most batteries, such as 3.6V/3.7V Li-ion/IMR/INR/ICR and Ni-MH/Ni-CD batteries. Like all of chargers, the VC2 Plus has selectable charging current (0.5A/1.0A). The VC2 Plus Charger also provides multiple protections. With the OV activation function, it will recondition and refresh old or over-discharged batteries. The countdown function tells you the remaining time to fully charge. Moreover, the charger is compatible with all 5V USB power including USB wall adapters, cell phone chargers, solar panel, PC USB, power banks, etc.


Lithium batteries charging parameter

Input Power: DC 5.0V 2.1A
0.5A CC Current: 500±50mA
1.0A CC Current: 1000±80mA
Cut-off Voltage: 4.20±0.05V
Operation Temperature: 0-40℃

Ni-MH batteries charging parameters

Input Power: DC 5.0V 2.1A
0.5A Pluse Charging Current: 500±50mA
1.0A Pluse Charging Current: 1000±80mA
Cut-off Voltage: 1.40±0.1V
Operation Temperature: 0-40℃

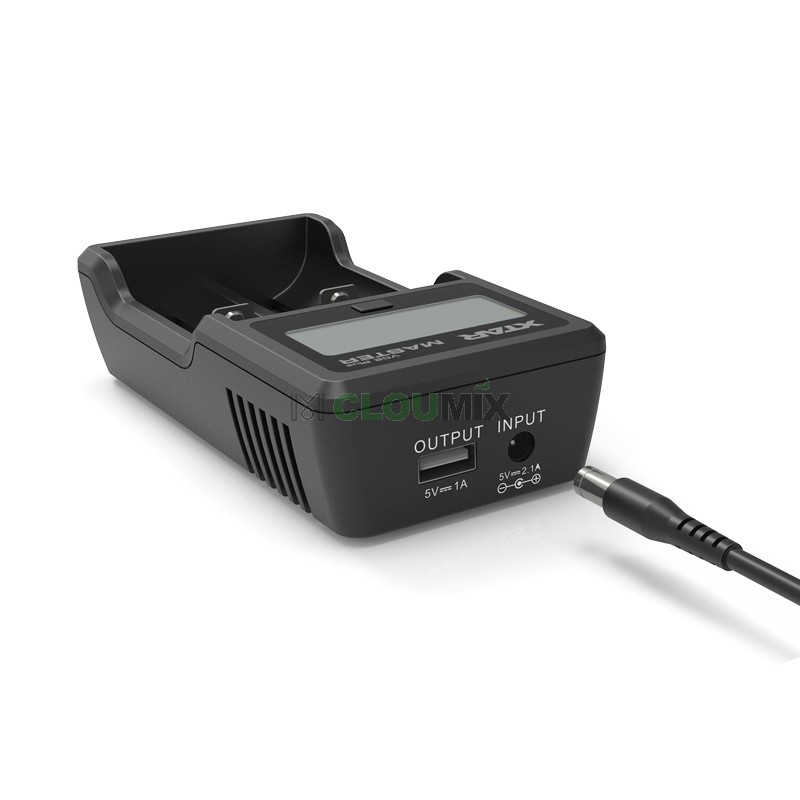

USB output parameter

USB Output No-load Voltage: 5.0±0.25V
Max output Current: 1000mA
Battery Voltage: 3.0±0.2V (over-discharge protection voltage)
➤ 1. Compatible with different kinds and sizes of most batteries

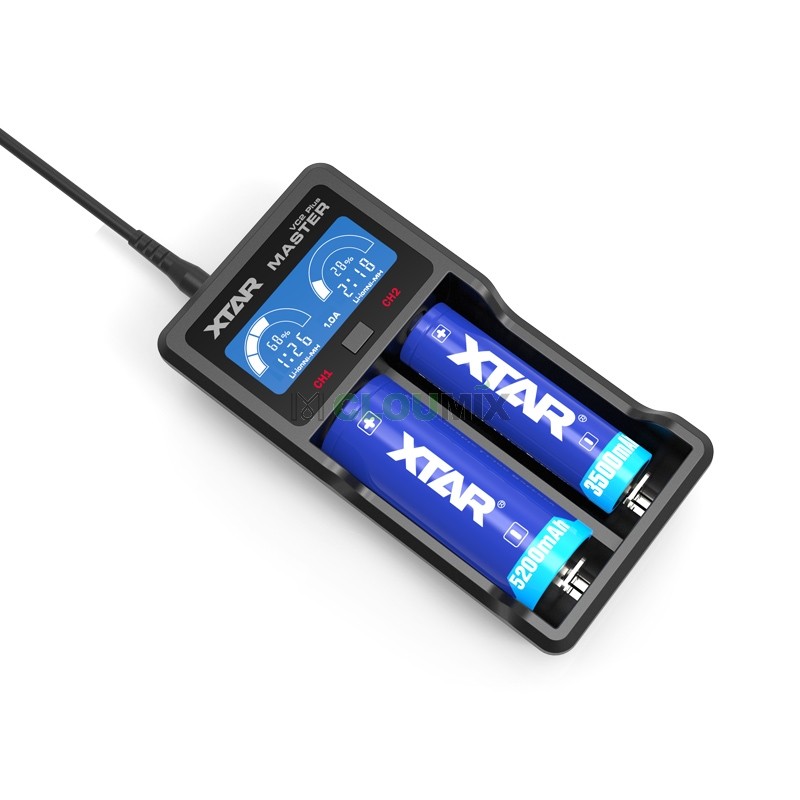

➤ 2. Innovative LCD display screen to display charging current, battery voltage and battery charged capacity
➤ 3. Adapt to any 5V USB power, charge everywhere at your will
➤ 4. "null"/"Err" display, keep you safe and help you to stop wasting your time in waiting
➤ 5. Feature OV activation function, recondition and refresh old or over-discharged batteries
➤ 6. Countdown timer function telling the remaining time to fully charge
➤ 7. Optional charging currents, 0.15A and 1A

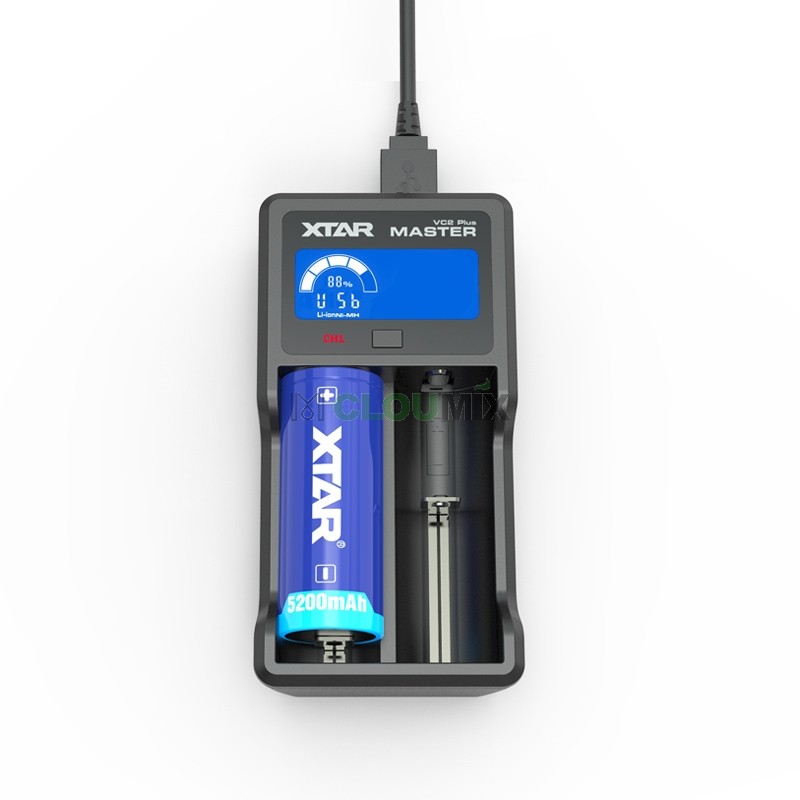

➤ 8. Power bank function display, clearly know the remaining battery power
➤ 9. Energy conservation and environment protection
➤ 10. Both batteries and external device can be charged at the same time.
Packing List
✔ 1 x XTAR VC2 Plus Charger
✔ 1 x USB Cable
✔ 1 x User Manual
✔ 1 x Warranty Card

❤ Please read the user manual carefully before using this VC2 Plus Charger.
